THERMAL INKJET · F3500 SERIES
TIJ date coding printers
FASTJET F3500
Clear codes on cartons and films
Cartridge-based thermal inkjet printers for manufacturing dates, expiry dates, lot numbers, barcodes and QR codes on packaging. Match the printer and ink to your application, from SME batch work to industrial production lines.
FASTJET TIJ · BY BETTER CODE
Low maintenance with full Thai-language support
20% ink-saving comparison claim
Helps manage ink costs for product and packaging coding. Actual consumption depends on message content, resolution and print settings.
Low Maintenance
Low maintenance helps reduce servicing tasks, with Better Code providing application-specific care advice.
Full Thai menus
Set up and manage print jobs through Thai menus, helping local operators learn and work more easily.
Full Thai text printing
Supports Thai characters, vowels and tone marks for product and packaging messages.
Straightforward operation

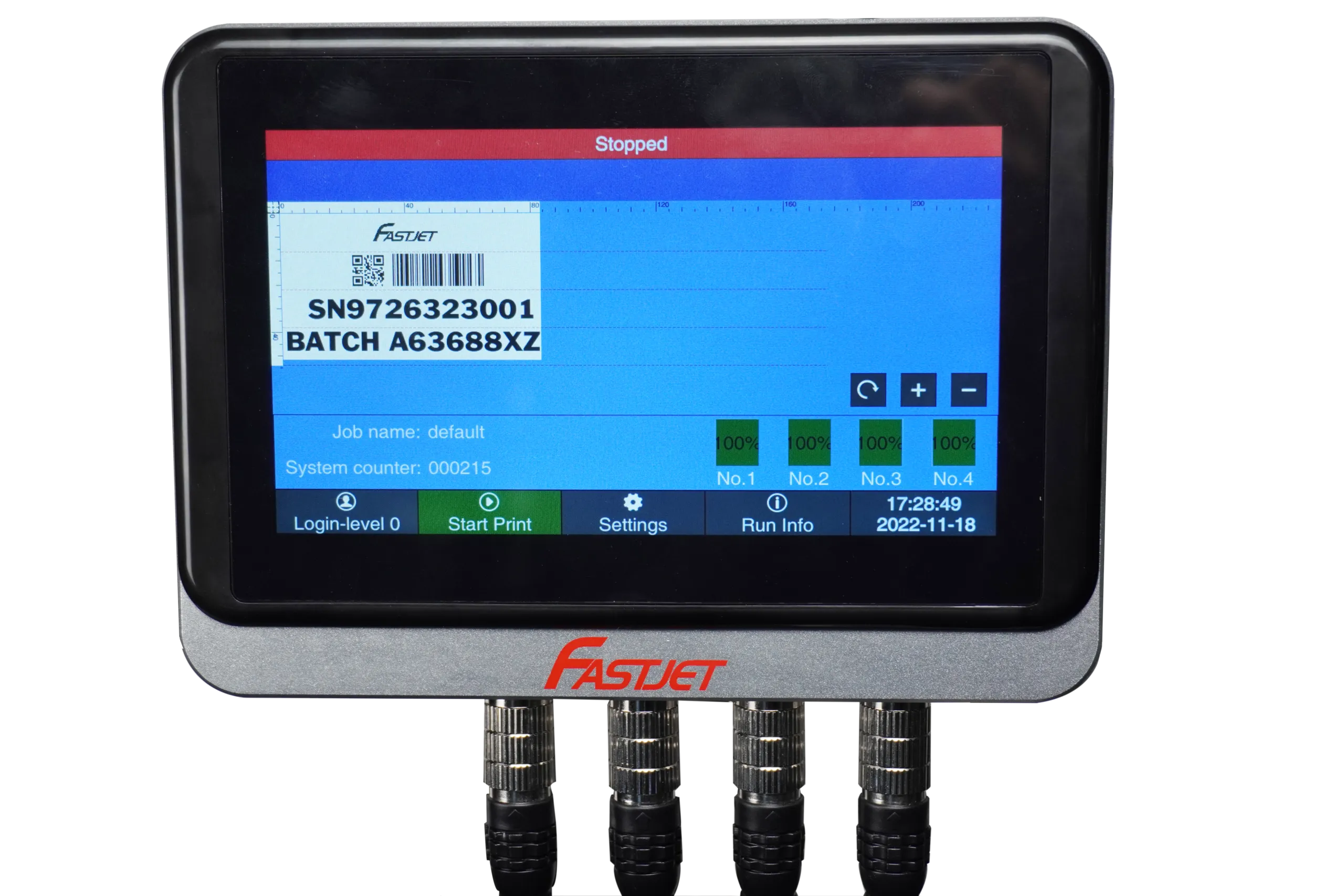

Create messages on a 7-inch colour touchscreen and update dates and lot numbers conveniently.
Cartridge-based system
Select ink for the substrate and follow the recommended printhead care and cartridge storage procedures.
Test before investing
Check clarity, adhesion and speed on actual samples.
THERMAL INKJET EXPLAINED
What is TIJ printing, and which applications suit it?
Thermal Inkjet (TIJ) uses heat to form vapour bubbles that eject ink droplets from the printhead. Cartridge-based systems suit clear text and codes where printhead clearance and product movement can be kept consistent.
SMEs and factories can assess TIJ for cartons, labels, pouches and films, with ink matched to the material and testing at actual operating speed.
FASTJET / F3500 SERIES
Choose the right printhead configuration
for your application
Manufacturing dates, lot numbers, barcodes or QR codes
Start with the required print area and locations, then choose the model for your line.
FASTJET F3511
1 printheadPrint height
For one print location, such as manufacturing dates, expiry dates and lot numbers. Match character or code dimensions to the available print area.
FASTJET F3521
2 printheadsWith two stitched heads
Increase print height by stitching heads, or assess separate print positions using a supported mounting arrangement.

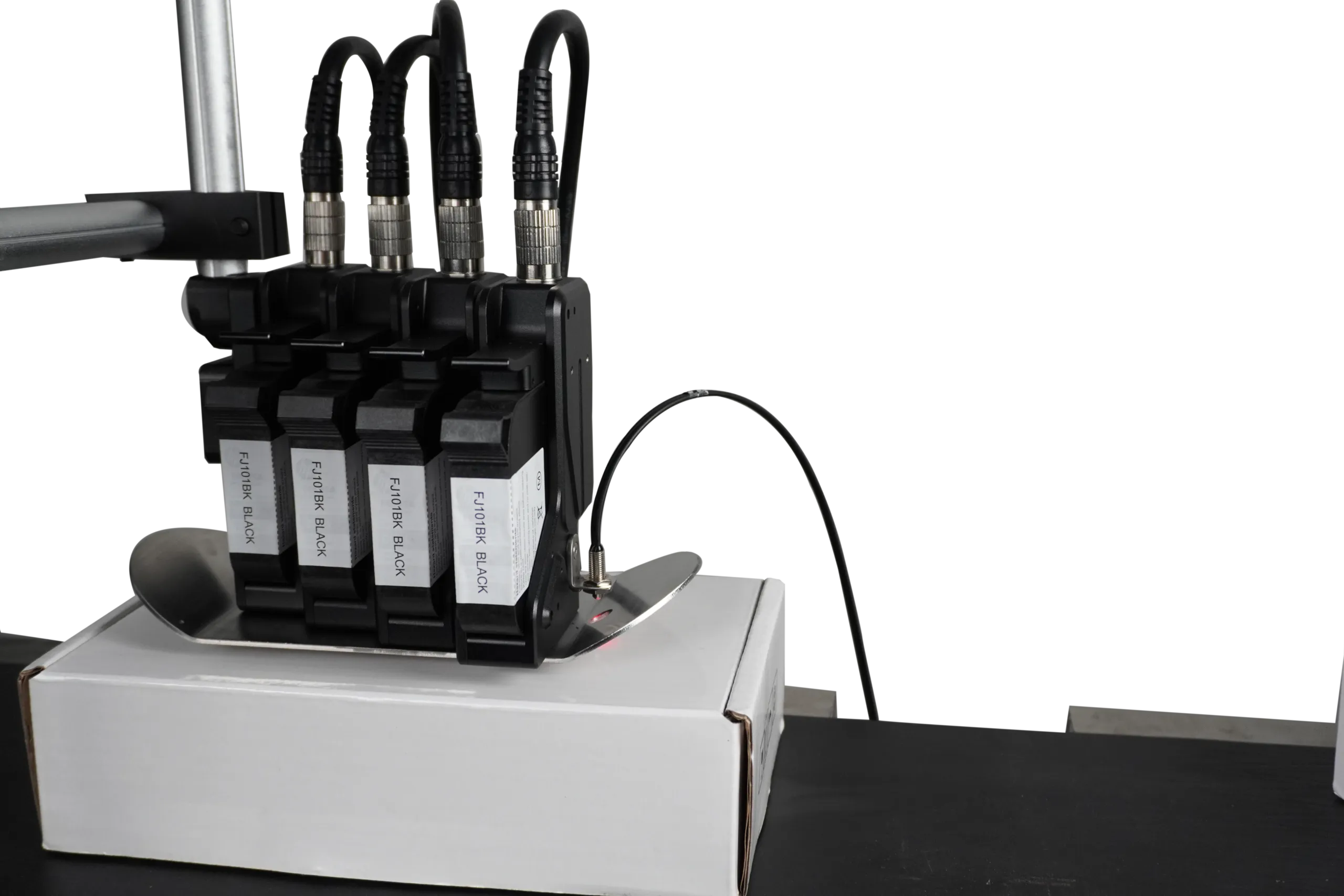

FASTJET F3541
4 printheadsWith four stitched heads
For larger print areas or multiple positions. Have the mounting space and actual print content assessed before choosing.
Not sure how many heads you need?
Send product photos, print content and line speed for assessment.
12.7 mm per head. Combined height depends on head stitching and a supported mounting arrangement. At separate print positions, each area’s size depends on its assigned heads. Confirm the configuration, ink and accessories in the quotation.
APPLICATIONS
Start with your product
Material and product handling are the starting points for TIJ selection.
Cartons and labels
For food, consumer goods and packing operations. Check whether the paper is absorbent or coated before selecting ink.
Pouches, films and plastics
Test drying time, adhesion and rub resistance for the specific film and coating.
Barcodes and QR codes
For product identification and lot tracking. Check code dimensions and quiet zones, then test with the actual reading equipment.
Compare clearly. Choose for your application.
Models differ in head count and print area · Each head prints 12.7 mm high
| Model | Head count | Height per head | Combined height with stitched heads |
|---|---|---|---|
| F3511 | 1 heads | 12.7mm | 12.7mm |
| F3521 | 2 heads | 12.7mm | 25.4mm |
| F3541 | 4 heads | 12.7mm | 50.8mm |

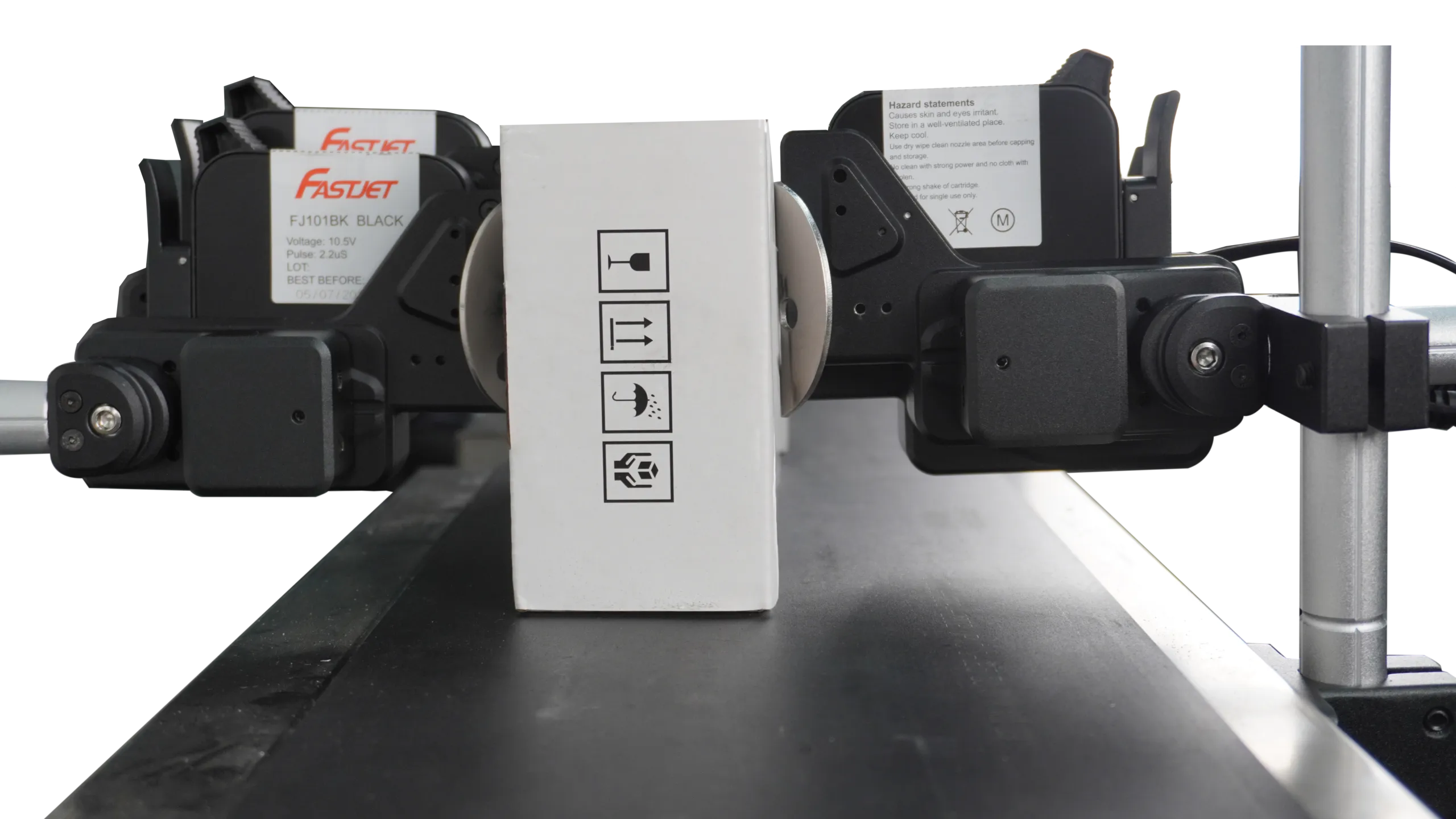

Stitched heads or separate print positions?
Combined height applies to heads stitched in a supported arrangement. If printing on different sides, the print area at each position depends on its assigned heads. Have the actual product assessed before selection.
Source: Better Code F3500 Series brochure · TF352022001-EN

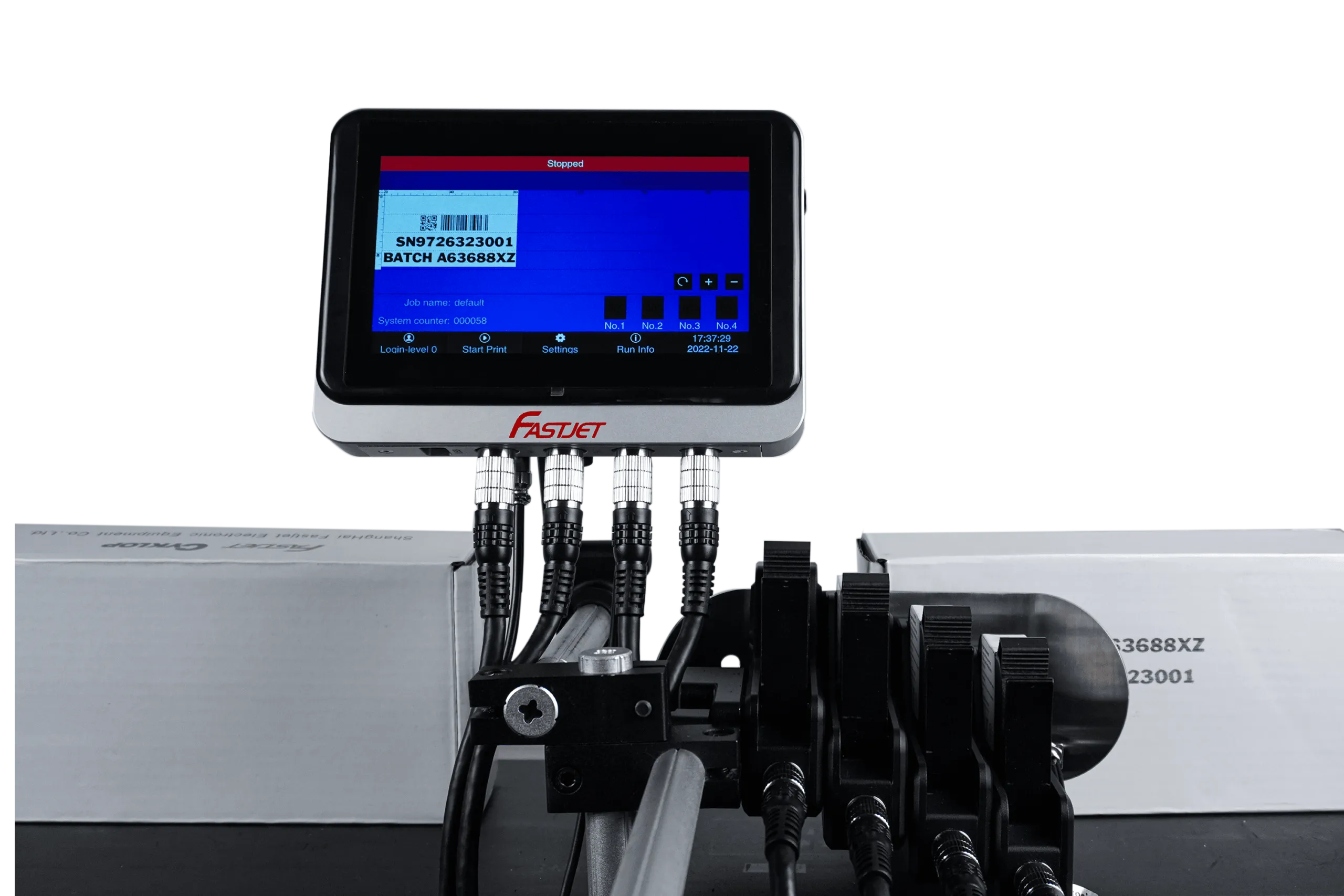

See actual printhead configurations
Key specifications before choosing TIJ
Speed, resolution and head count must be considered together. Confirm settings and equipment for the required application.
| Feature | F3500 Series details |
|---|---|
| Technology | HP TIJ 2.5 |
| Resolution | Selectable 150 / 200 / 300 / 600 DPI |
| Print height | 12.7 mm per head / 25.4 mm with two stitched heads / 50.8 mm with four stitched heads, using a supported arrangement |
| Printing distance | Approximately 1 mm recommended; brochure maximum 5 mm. Actual quality must be tested. |
| Speed | Depends on DPI: brochure maximum 152 m/min; 76 m/min at 300 DPI |
| Display | 7-inch colour touchscreen |
| Connectivity | Ethernet, RS232 and USB according to supported functions |
| Print content | Dates, times, counters, text, logos, barcodes and QR codes in supported formats |
Four factors for the right selection
01
Material and ink
Send actual samples, including coatings and moisture conditions.
02
Clearance and conveyor
Check movement, mounting space and printhead position.
03
Speed and code
Specify products per minute, line count and message or code dimensions.
04
Cost and maintenance
Assess ink consumption for the actual job, idle periods and cartridge care.
Connect coding to your factory systems
Better Code assesses TIJ integration with conveyors, sensors and control systems, including software data input through supported interfaces. Vision inspection or code readers can be assessed for post-print checks within the project scope.
INDUSTRIES
Industry applications
Assess TIJ for cartons, labels and pouches on food and cosmetics lines. Explore technology selection by product type.
ANSWERS BEFORE INVESTMENT
Questions before buying a TIJ printer
Should I use TIJ for date coding on cartons and pouches?
For cartons, labels, pouches and films, consider TIJ models such as FASTJET F3511 or F3541. Selection depends on print area, message or code, number of positions and mounting space. For continuous lines or bottle coding, CIJ date coding may be more suitable. Send samples to Better Code for testing before confirming a model.
Can TIJ print on cartons, films and plastics?
TIJ can be considered when suitable ink is available, but not every plastic is compatible. Test drying time, adhesion and rub resistance on the actual substrate.
Should I choose FASTJET F3511 or F3541?
Start with the print area, message or code, number of print positions and mounting space. Better Code can assess samples and confirm the model and printhead configuration before purchase.
How does TIJ differ from CIJ?
TIJ uses ink cartridges, while CIJ uses a continuous inkjet system. Selection depends on material, clearance, speed, data format and operating pattern. If printhead distance is difficult to control, compare both technologies at the actual site.
Can 600 DPI be used at every speed?
Print speed depends on DPI and application conditions. The maximum speed is not available at every setting. Test the actual message or code at your production speed.
Will printed QR codes be readable?
The printer supports QR code formats, but actual scanning must be tested. Results depend on code size, data quantity, clarity, background colour, printing distance and the reader used.
How should I maintain TIJ printers and cartridges?
Follow the model and ink instructions. Check the printhead before production, and store or cap cartridges as recommended during idle periods to maintain print quality.
Does it support Thai text?
Yes. It supports Thai menus and text printing, including characters, vowels and tone marks, for setting up product and packaging messages.
How much does a TIJ printer cost, and what information is needed?
Pricing depends on the model, head count, ink, brackets, sensors and integration. Send product photos, material type, message or code, line speed and installation photos for an application-specific quotation.
Understand the technology before investing
Coding on cartons and films
Explore FASTJET F3500 Series applications.
Read the TIJ guideCompare with CIJ
Explore F650 and F640 for production-line coding.
Explore CIJ date printersShare your coding application with Better Code
Start with product photos, material, message or code and line speed. We can test samples and assess the right equipment configuration.
