HIKROBOT Industrial Code Readers (ID2000 / ID3000 / ID5000): How to Choose Fixed-Mount Barcode, QR & DPM Scanners for Production Lines
How Do Industrial Code Readers Differ from Handheld Scanners and OCR Cameras—and How Do You Choose Between HIKROBOT ID2000, ID3000 & ID5000?
Industrial fixed-mount code readers differ from handheld scanners by automating 100% hands-free high-speed conveyor decoding, and differ from OCR date code inspection cameras by specializing in 1D barcodes, 2D QR/Data Matrix, and laser/dot-peen DPM codes. Choose HIKROBOT ID2000 for ultra-compact machines, ID3000 for general conveyors & polarized DPM, ID5000 for multi-code high-speed lines, or ID6000 for wide-FOV logistics—supplied by Better Code Co., Ltd., Official HIKROBOT Distributor in Thailand.

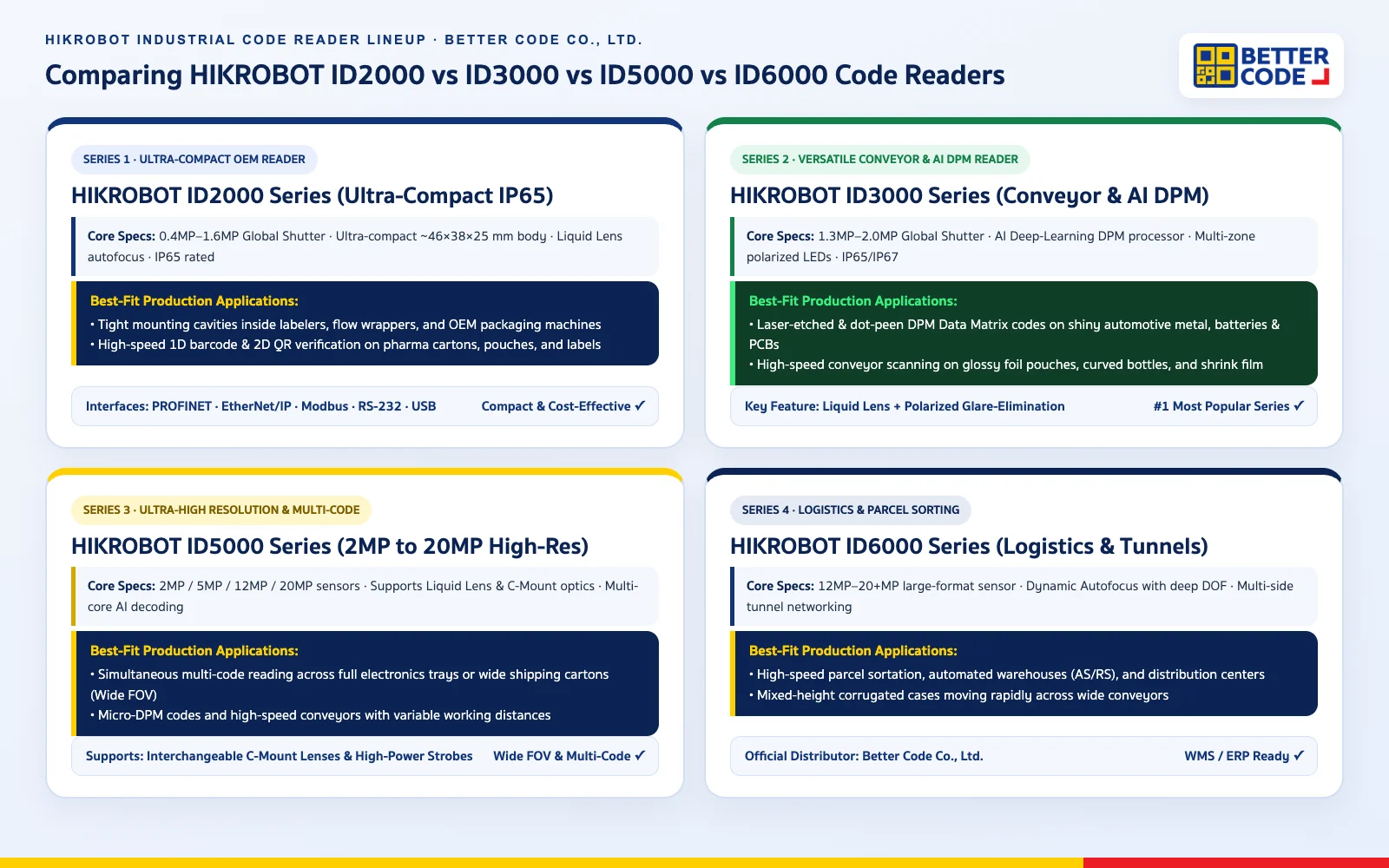

Comparison of the 4 Core HIKROBOT Industrial Code Reader Series: ID2000 vs ID3000 vs ID5000 vs ID6000
As an Official HIKROBOT Distributor in Thailand, Better Code Co., Ltd. breaks down the four primary HIKROBOT Fixed-Mount Industrial Code Reader families so your engineering and procurement teams can right-size sensor resolution, optics, and decoding speed:
| Engineering Parameter | HIKROBOT ID2000 Series (Ultra-Compact) | HIKROBOT ID3000 Series (Versatile & DPM) | HIKROBOT ID5000 Series (High-Res & Multi-Code) | HIKROBOT ID6000 Series (Wide-FOV Logistics) |
|---|---|---|---|---|
| Form Factor & Mounting | Ultra-compact (approx. 46×38×25 mm) with rotatable connector for tight OEM machine cavities | Compact industrial housing with integrated multi-zone LED illumination and dual laser aiming | High-performance modular body supporting integrated Liquid Lens or external C-Mount optics | Heavy-duty overhead/side-mount housing engineered for wide conveyor portals and logistics tunnels |
| Sensor Resolution & AI Decoding | 0.4 MP – 1.6 MP Global Shutter for rapid 1D/2D label and package decoding | 1.3 MP – 2.0 MP Global Shutter + AI Deep-Learning DPM Engine for low-contrast & shiny parts | 2 MP / 5 MP / 12 MP / 20 MP ultra-high resolution for micro-codes or simultaneous multi-code arrays | 12 MP – 20+ MP large-format sensors with multi-core parallel decoding for high-speed sorting |
| Optics & Autofocus System | Fixed focus or solid-state Liquid Lens with millisecond electronic focus adjustment | Liquid Lens Autofocus or motorized mechanical focus for instant recipe changeovers | Supports both Liquid Lens and interchangeable C-Mount lenses for custom working distances | Dynamic Autofocus with ultra-deep Depth of Field (DOF) for mixed-height cartons |
| Best-Fit Applications | Labeling machines, flow wrappers, pharma cartons, and short-to-medium range inline QR/barcode checks | Laser/dot-peen DPM on automotive metal, PCBs, batteries, and high-speed packaging conveyors | Multi-code tray reading, wide corrugated shipping cases, tire sidewalls, and dense electronics assemblies | Automated parcel sorting, warehouse distribution conveyors, pallet scanning, and multi-sided tunnels |
| PLC & Factory Protocols | TCP/IP, RS-232, USB, FTP, PROFINET, EtherNet/IP, Modbus TCP/IP, and Digital I/O | PROFINET, EtherNet/IP, Modbus TCP/IP, Mitsubishi MC, Omron FINS, RS-232, and Opto-isolated I/O | Gigabit Ethernet, PROFINET, EtherNet/IP, Modbus TCP/IP, MC Protocol, RS-232, and IDMVS SDK | Gigabit Ethernet, PROFINET, EtherNet/IP, Modbus TCP/IP, and multi-reader master/slave networking |
| Environmental Protection | IP65 washdown/dust protection | IP65 / IP67 ruggedized against oil mist, dust, and moisture | IP65 / IP67 die-cast aluminum housing for 24/7 operation | IP65 / IP67 industrial grade |
Clear Engineering Distinction: Industrial Code Reader (ID Series) vs OCR Smart Camera (SC Series) vs Handheld Barcode Scanner
Engineering and procurement teams often ask whether their line requires a dedicated HIKROBOT ID Series Industrial Code Reader or an OCR date code inspection camera (HIKROBOT SC Series Smart Camera). This comparison clarifies the exact technical boundary (see also our Vision Camera Pricing Guide):
| Comparison Criteria | 1. Fixed-Mount Industrial Code Reader (HIKROBOT ID2000 / ID3000 / ID5000) | 2. OCR Date Code & Vision Smart Camera (HIKROBOT SC Series) | 3. Handheld / Office Barcode Scanner |
|---|---|---|---|
| Primary Function & Target Data | 1D & 2D Symbology Decoding: Code 128, EAN-13, ITF-14, QR Code, Data Matrix, GS1, and laser/dot-peen DPM marks | Human-Readable Character Verification (OCR/OCV): Reads printed MFG/EXP dates, lot strings, plus label/cap inspection (see OCR Date Code Inspection Cameras) | Manual one-by-one scanning of clean paper barcode labels by an operator |
| Simultaneous Barcode + MFG/EXP Text Check | Decodes data encoded inside the 1D/2D barcode only (does not inspect human-readable text outside the barcode) | Yes — All-in-One! Reads both human-readable MFG/EXP characters (OCR) and 1D/2D barcodes in a single frame | Cannot read human-readable date text; requires manual trigger pulls |
| Inline Conveyor Throughput | Extreme (up to dozens of scans/sec at 1–3+ m/s) with integrated Liquid Lens and polarized illumination | High (supports continuous packaging lines) running multi-tool OCR, barcode, and defect checks | Slow (bottlenecked by manual handling) and prone to human fatigue skips |
| DPM on Shiny Metal & Damaged Codes | Best-in-Class: Dedicated AI DPM algorithms and multi-sector polarized dome lighting for metal, PCBs, and wrinkled foil | Reads standard printed 1D/2D codes well, though ID Series is more specialized for micro-DPM on bare metal | Struggles or fails on reflective metal DPM, curved bottles, or shrink film glare |
| PLC Integration & Automated NG Sorting | Outputs decoded string + OK/NG I/O directly to PLC via PROFINET, EtherNet/IP, Modbus TCP/IP, or RS-232 | Outputs multi-condition OK/NG triggers to PLC to actuate pneumatic rejectors (see PLC Vision OK/NG Sorting Systems) | USB keyboard wedge to PC only; cannot drive industrial conveyor rejectors |
4 Tough Industrial Barcode, QR & DPM Challenges—and How HIKROBOT ID Series Solves Them
On real factory floors, barcodes and 2D Data Matrix marks are rarely printed on flat white paper. Specular reflection, curved packaging, high line speeds, and height variations cause conventional scanners to fail. Here is how Better Code Co., Ltd. solves the 4 toughest code reading challenges using HIKROBOT Industrial Code Readers:
Laser-Etched & Dot-Peen DPM Codes on Shiny Metal, Automotive Parts & PCBs
In automotive, electronics, and metal fabrication plants, 2D Data Matrix codes are etched directly by Laser Marking Systems or dot-peen pins onto machined aluminum, steel gears, battery cells, and glossy PCBs—creating severe specular glare, low contrast, and background machining noise.
1. HIKROBOT ID3000 / ID5000 DPM Models: Feature 4-quadrant independently controllable polarized & diffused dome LEDs to eliminate metallic reflection.
2. AI Deep-Learning DPM Reconstruction: Connects sparse dot-peen matrices and suppresses surface hairline scratches for >99.9% read rates.
QR Codes & GS1 Barcodes on Wrinkled Foil Pouches, Curved Bottles & Shrink Film
2D QR and GS1 DataMatrix codes printed at high speed by CIJ Printers or TIJ Printers onto flexible foil pouches and curved bottles often suffer from film wrinkles, specular hot-spots, perspective distortion, and discrete inkjet dot spacing.
1. High-Sensitivity Global Shutter Sensor: Freezes packs moving at 1–3+ m/s with zero motion blur.
2. Dot-Matrix & Geometric Distortion Algorithms: Accurately decodes CIJ/TIJ dot-matrix QR codes on contoured bottles and crinkled pouches even when partially occluded.
Variable Carton Heights on Conveyors & Simultaneous Multi-Code Scanning
End-of-line packaging and warehouse conveyors often handle corrugated boxes of varying heights or electronics trays containing 10 to 50 individual serialized barcodes that must all be captured in a single cycle.
1. Solid-State Liquid Lens Autofocus: Shifts focal length electronically in milliseconds to accommodate mixed product heights with zero mechanical wear.
2. HIKROBOT ID5000 (5MP–20MP) & ID6000: Captures an expansive Field of View (FOV) and decodes dozens of 1D/2D barcodes simultaneously.
Eliminating Unreadable Barcodes, Duplicates & Retailer Chargebacks
If dust partially blocks an inkjet nozzle or a ribbon wrinkles mid-run, unreadable barcodes can slip into shipping cases—leading to Modern Trade rejection, warehouse bottlenecks, or costly export recalls.
1. Inline Print & Verify Loop: Mount a FASTJET Industrial Printer upstream and a HIKROBOT ID2000/ID3000 reader 15–30 cm downstream.
2. 100% Verification & PLC Reject: Verifies every printed code against the master string and triggers an automated rejector or alarm on any No-Read.

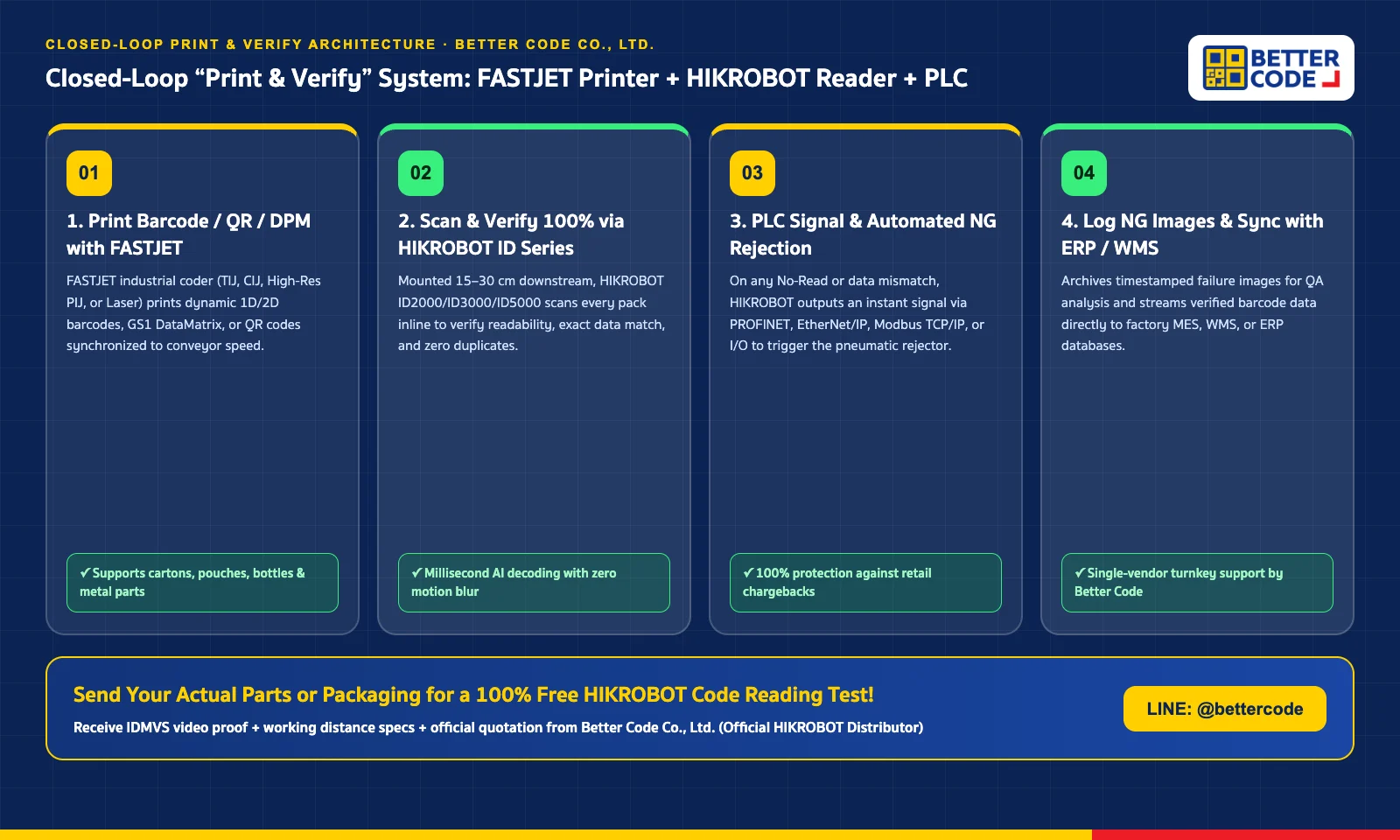

Closed-Loop “Print & Verify” Architecture: Pairing FASTJET Printers, HIKROBOT Code Readers & PLC Rejectors
The unique advantage of partnering with Better Code Co., Ltd. is single-vendor accountability across both industrial coding (FASTJET CIJ, TIJ, High-Res PIJ & Laser Printers) and machine vision verification (HIKROBOT Code Readers & Smart Cameras). Here is how our 4-stage Closed-Loop Print & Verify architecture operates on your line:
Stage 1: High-Contrast Barcode, QR, or DPM Coding with FASTJET
Triggered by an upstream photo-sensor and synchronized via a rotary encoder, a FASTJET coder (TIJ F3500 for cartons/pouches, High-Res PIJ S5082 for GS1 corrugated cases, CIJ F650, or F7100 Laser) prints serialized 1D/2D barcodes or QR codes onto moving products.
Stage 2: 100% Inline Decoding & Grading via HIKROBOT ID Series
Mounted 15–30 cm downstream of the printhead, a HIKROBOT ID2000, ID3000, or ID5000 reader captures a Global Shutter frame under polarized LED strobe lighting and validates: (1) Read vs No-Read status, (2) Exact string match against the PLC/MES master job, and (3) Duplicate serialization prevention.
Stage 3: Real-Time PLC Communication & Automated NG Rejection
If a barcode is missing, smudged, unreadable, or mismatched, the HIKROBOT reader sends an immediate NG signal via opto-isolated I/O or PROFINET / EtherNet/IP / Modbus TCP/IP to the line PLC—actuating an air-blast nozzle or pneumatic pusher into a locked NG bin (learn more in our PLC Vision OK/NG Sorting Guide).
Stage 4: NG Image Archiving & ERP / WMS / MES Traceability
Every decoded string and timestamped NG failure image can be logged via TCP/IP Socket, FTP, or database integration—giving QA and warehouse teams a complete audit trail for export and retail compliance.
Send Your Actual Parts or Packaging for a 100% Free HIKROBOT Lab Test
Whether you need to decode micro laser-marked DPM codes on shiny metal, dense PCB Data Matrix marks, reflective foil pouches, or high-speed shipping cartons, send your samples to Better Code Co., Ltd. (Official HIKROBOT Distributor in Thailand). See also our guides on How to Choose a Vision System Integrator and Types of Machine Vision Cameras:
We benchmark your parts across HIKROBOT ID2000, ID3000, ID5000, and SC Series cameras to identify the most cost-effective 100% read-rate setup.
Receive screen-recorded video from HIKROBOT IDMVS showing millisecond decoding times, optimal working distance, and polarized lighting settings.
Purchase standalone HIKROBOT readers for your in-house team, or request a complete turnkey station with brackets, PLC integration, and pneumatic rejectors.
Frequently Asked Questions: HIKROBOT Industrial Code Readers & DPM Scanning
How does an industrial fixed-mount code reader differ from an OCR date code inspection camera?
HIKROBOT ID Series industrial code readers (ID2000, ID3000, ID5000, ID6000) use dedicated multi-core decoding processors and deep-learning algorithms engineered specifically to read 1D barcodes (Code 128, EAN-13, ITF-14) and 2D symbologies (QR Code, Data Matrix, GS1, and DPM marks) at extreme conveyor speeds. Conversely, HIKROBOT SC Series Smart Cameras use OCR/OCV vision tools to inspect human-readable alphanumeric text (MFG/EXP dates, lot codes) and label presence. If your line requires both 2D barcode decoding and human-readable date verification simultaneously, Better Code Co., Ltd. can configure a combined Smart Camera or hybrid inspection station.
Which HIKROBOT model is best for reading laser-marked or dot-peen DPM codes on reflective metal and PCBs?
Direct Part Marking (DPM) created via laser etching, chemical etching, or dot-peen stamping on machined aluminum, cast iron, automotive gears, or glossy solder-mask PCBs suffers from specular glare and low contrast. We recommend the HIKROBOT ID3000 Series or ID5000 Series equipped with multi-quadrant polarized red/white/blue LED illumination and AI DPM reconstruction algorithms, which eliminate metallic glare and decode degraded dot-matrix marks reliably.
Can HIKROBOT code readers handle boxes or parts of varying heights on the same conveyor?
Yes. HIKROBOT ID2000, ID3000, and ID5000 readers offer solid-state Liquid Lens autofocus modules that adjust focal distance in milliseconds with zero moving mechanical wear. For high-speed parcel sorting and wide-conveyor logistics with extreme height variation, the HIKROBOT ID5000 (up to 20 MP) and ID6000 Series provide ultra-deep depth of field (DOF) and dynamic autofocus.
Which PLC brands and industrial protocols do HIKROBOT ID Series readers support?
HIKROBOT ID Series readers natively support PROFINET, EtherNet/IP, Modbus TCP/IP, Mitsubishi MC Protocol, Omron FINS, TCP/IP Server/Client, Serial RS-232, USB HID/CDC, and opto-isolated Digital I/O. They integrate seamlessly with Siemens, Mitsubishi, Omron, Rockwell Allen-Bradley, Keyence, and Schneider PLCs across Thai manufacturing plants.
Can we pair a HIKROBOT code reader with a FASTJET date coder for 100% inline Print & Verify inspection?
Absolutely. In a Closed-Loop Print & Verify setup, a FASTJET printer (TIJ, CIJ, High-Res Case Coder, or Laser) prints dynamic QR codes, GS1 DataMatrix, or serialized barcodes onto packaging, and a HIKROBOT ID2000 or ID3000 mounted 15–30 cm downstream verifies 100% readability and database match—triggering a pneumatic rejector or line stop immediately if a No-Read or duplicate code occurs.
Does Better Code Co., Ltd. offer free sample testing on our actual parts or packaging before purchase?
Yes, 100% free of charge. As an Official HIKROBOT Distributor in Thailand, Better Code Co., Ltd. maintains a full application lab. Send us your laser-etched metal parts, PCBs, foil pouches, or corrugated cases, and our engineers will test reading rates, focal distances, and lighting setups, delivering video proof and an itemized quotation.
Book a Free HIKROBOT Barcode & DPM Reader Test with Better Code Co., Ltd.
Share your barcode/DPM type and conveyor speed. Better Code Co., Ltd. will specify the exact HIKROBOT Code Reader or Vision System—or design a complete Print & Verify loop with FASTJET Coding Printers.
Request Free Sample Test & Quote ↗Explore HIKROBOT Vision Systems ↗Send Part/Barcode Photo on LINE @bettercode ↗Technical References & Testing Scope
- Technical specifications for HIKROBOT ID2000, ID3000, ID5000, and ID6000 Series Fixed-Mount Industrial Code Readers and SC Series Smart Cameras (IDMVS / VisionMaster software): Machine Vision Engineering Department, Better Code Co., Ltd. (Official HIKROBOT Distributor in Thailand).
- Closed-Loop Print & Verify integration standards pairing FASTJET coding systems (CIJ, TIJ, High-Res PIJ, Laser) with HIKROBOT code readers over PROFINET, EtherNet/IP, and Modbus TCP/IP.
